Wall Mount Patch Panels

The FiberSource Building Entrance Splice Facility (BESF) provides cross-connection capability for up to 864 fibers in a traditional wal lmount design. The BESF enclosure is a sturdy, water resistant splice cabinet meant to house large quantities of transition splices between outside and indoor cables. This enclosure meets NEMA 4, 12, and 13 ratings to insulate against blown dirt and dust, as well as splashing and hose directed water. Holds up to 36 Splice Trays. For price conscience applications FiberSource as reintroduced a line of economical line wall mount splice boxes.  Click on the link at the top right hand corner of this page for more information.

Specifications

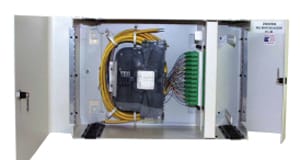

Wall Mount Splice Cabinet 6752

The 6752 Building Distribution Cabinet (BDC) is a wall-mounted unit used to patch, or patch and splice optical fibers. It accommodates up to 144 connections and can use a wide range of connector types. Cabinets can be ganged together to accommodate capacities greater than 144 connections. The cabinet includes lockable provider-side and customer-side doors, each with a different lock. Buffer tubes, ribbons, and pigtails can be neatly coiled beneath the splice trays and routed to the adaptor plate(s). The BDC includes a back-plate that supports the cable tie down, internal fiber management, splice trays, and an adapter plate. In the 36 and 72 fiber version the entire back-plate can be removed from the wall-mounted box and placed on a table for comfortable splicing. This is a welcome improvement to the old style wall-mount boxes that require splicers to work on their feet within the confines of a box.

These patch and splice units typically come pre-loaded with pre-terminated pigtails routed between the adaptor plate and the splice trays. Standard, 12 fiber, 900um color coded, singlemode or multi mode pigtails are terminated with TIA/EIA standard connectors including FC, LC, SC, and ST. Connectors are loaded into the adaptors and the pigtails are routed directly into the splice trays.

These panels are also available with factory terminated, pre-loaded optical cables. FiberSource’s standard optical cables* may be ordered in specific lengths and terminated with connectors.

The patch and splice units or the pre-stubbed patch units are packaged and shipped completely ready for wall-mounting and cable splicing.

Features

• Removeable back-plate enabling cable tie down, splice trays and adaptor plate to be removed from the box and placed on a table
• Grounding lugs allow cables with metallic components
  to be grounded
• High density, compact and uncrowded
• Available with pre-terminated cable stubs
• Available with pre-terminated pigtails for in-unit splicing
• Accepts all standard cable and connector types
• Made in the U.S.A.

Benefits

• Easy to use
• More comfortable splicing
• Promotes ease of use and safety
• Saves space and cost
• Compatible with existing plant

Wall Mount Splice Cabinet 6755

The Wall Mount Splice cabinets are designed for ease of use and security in any application requiring splicing or cables indoors. Perfect for transition splices (OSP/ISP) and branch splices. The 6755 designs accommodate up to 72 or up to 288 splices with room for a significant service loop. The 288R (Not Show) is specifically designed for ribbon fibers and mass fusion splicing, and will accommodate up to 24 12-fiber ribbon splices and up to 45 feet of jacketed cable in storage.

Features

• Multiple cable ports
• Ample cable storage space
• High density, compact and uncrowded
• 16 Gauge CRS construction
• Durable powder coat finish in beige
• Lockable door
• Up to 288 fiber splice and slack storage capacity in ribbon cable
• Made in the U.S.A

Benefits

• Easy to use
• More comfortable splicing
• Promotes ease of use and safety
• Saves space and cost
• Compatible with existing plant

Building Distribution

The 6756 NEMA 3 Rated Outside Plant Building Distribution Cabinet (OSP-12) is a wall-mounted unit with a pole mount option used to patch, or patch and splice optical fibers. It accommodates up to 12 connections and can use a wide range of connector types. The cabinet includes a lockable door. Buffer tubes, ribbons, and pigtails can be neatly coiled beneath the splice trays and routed to the adaptor plate(s). The OSP-12 includes a back-plate that supports the cable tie down, internal fiber management, splice trays, and an adapter plate. The entire back-plate can be removed from the wall-mounted box and placed on a table for comfortable splicing. This is a welcome improvement to the old style wall-mount boxes that require splicers to work on their feet within the confines of a box.

These patch and splice units typically come pre-loaded with pre-terminated pigtails routed between the adaptor plate and the splice trays. Standard, 12 fiber, 900um color coded, singlemode or multimode pigtails are terminated with TIA/EIA standard connectors including FC, LC, SC and ST. Connectors are loaded into the adaptors and the pigtails are routed directly into the splice trays.

These panels are also available with factory terminated, pre-loaded optical cables. FiberSource’s standard optical cables* may be ordered in specific lengths and terminated with connectors.

The patch and splice units or the pre-stubbed patch units are packaged and shipped completely ready for wall-mounting and cable splicing.

Features

• Removable back-plate enabling cable tie down, splice trays and adaptor plate to be removed from the box and placed on a table
• Grounding lugs allow cables with metallic components
  to be grounded
• High density, compact and uncrowded
• Available pre-terminated and pre-loaded
• 304 Stainless steel powder coat
• Accepts all standard cable and connector types
• NEMA 3 Rated
• Gasketed Lockable cover
• Pole Mount Option
• Made in the U.S.A.

Benefits

• Easy to use
• More comfortable splicing
• Promotes ease of use and safety
• Saves space and cost
• Compatible with existing plant
